ABS Dual Flush Toilet Vales and Fill Valve Cistern Mechanism Toilet Cistern Fittings
Key attributes
| Flush Outlet | Fits 2'' |
| Flush volume | Half flush and full flush volume adjustable |
| Toilet style | For Standard toilet |
| Overflow pipe | Adjustable |
| Advantage | Silicon seal,rotproofness,insensitive against dirt,long life time |
| Certificate | CE,CUPC, SASO, A Mark(Malaysia certificate) |
ALLWELL Dual Flush Toilet Tank Fitting Set - Factory Direct Professional Quality
Product Details:
Core Features
1. Hydraulic Differential Needle Valve Technology
- Automatically adjusts to different water pressures for stable water level
- Silent operation (<35dB)
- Anti-siphon and high-pressure resistant design
2. Intelligent Adjustment System

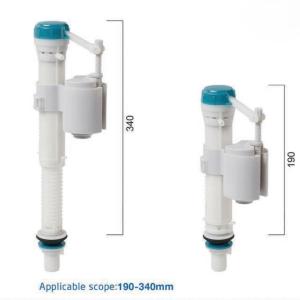

- 190-340mm height adjustable
- Dual adjustment: external float clip + internal float screw
- CL line anti-siphon protection
3. Modular Design
- Quick-release filter (multiple specifications available)
- Integrated float cup structure
- Universal connection design
Technical Specifications
- Material: UPC-certified ABS engineering plastic
- Working water pressure: 0.05-0.8MPa
- Flush volume: 3L/6L dual mode
- Operating temperature: 1-60°C
Installation Instructions
1. Adjustment Steps:
① Push the adjustment tab in OPEN direction
② Slide float to desired height
③ Lock in place in CLOSE direction
2. Important Notes:
- Ensure proper CL line connection
- Conduct anti-siphon test after installation
FAQ
1. How to handle filter clogging?
A: Rotate filter housing counterclockwise for removal and cleaning. Recommend cleaning every 3-6 months.
2. What's the warranty policy?
A: 2-year warranty with free replacement for non-human damage.
3. Is it suitable for commercial use?
A: Yes, this product has passed 100,000 durability tests and is ideal for high-frequency usage.
4. Are there wholesale discounts?
A: Factory direct pricing with tiered discounts for 50+ sets, supports logo customization.
Package Contents
- Inlet valve assembly (Model A002)
- Dual flush outlet valve
- Filter set (coarse/fine)
- Installation accessory kit
- Multilingual manual
